用途概述 APPLICATIONS
ETP系列電動油泵總成適用于車載、油庫、工地、農場等野外作業給車輛或其它燃油設備添加熔點不大于55℃的油品。該系列油泵總成由電機、油泵、流量表、耐油膠管、接頭、加油槍組成。它具有攜帶方便、可靠性高、操作快捷、維護簡單等特點。它能顯示單次加油量、累計加油量，單次加油完畢只要調節置零，手輪可將數據清零。加油數據顯示在顯示屏上，清晰美觀，還可以獨立操作。
注意：本加油機禁止打汽油。
ETP series of electric transfer pump unit is applicable for fieldwork, such as transportation, oil depot, working site, farm etc. To provide oil which melting point of it is less than 55℃ to those vehicle and fuel equipment.This series of pump is consisting of electric machinery, pump, flow meter, hose, joint and nozzle. Have characteristics of high reliability, fast operation, easy maintenance etc. It can display the single oil volume and accumulative oil volume.When a single refueling finished, adjust it to zero, then the total data can be zero.Those data are easy to see and can be operated in independently.
Note: Petrol is forbidden for this machine.
產品圖片 PRODUCT PICTURES

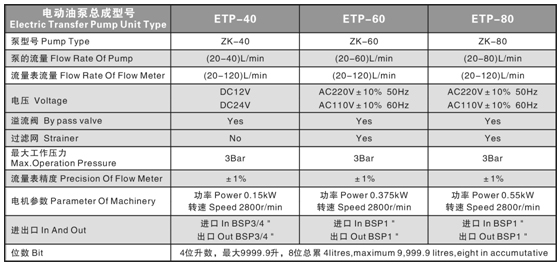

技術參數 TECHNICAL SPECIFICATION
注：按客戶要求油泵可配移動推車式，型號分別為ETP-40A/60A/80A，油槍可選配自封加油槍。溫度：-25℃ — +55℃；相對濕度：30% — 90%；大氣壓力：86Kpa — 106Kpa。
Note: In order to meet the customer requirement pump can be selected and matched with mobile cart in the type of ETP-40A/60A/80A, nozzle can be selected and matched with automatically nozzle.Temperature: -25℃-±55℃ ; Relative humidity: 30%-90%;Atmospheric pressure: 86Kpa-106Kpa.
產品部件圖 PRODUCT PART FIGURE
操作步驟 OPERATION STEPS
1、把所有配件正確連接起來，并保證已經密封；（注：吸油膠管自備）
2、接上電源，啟動電機；
3、打開加油槍進行給加油容器加油；
4、加油完畢，掛上油槍即完成一次加油。
1. Connect all the parts in properly, ensure it’s well sealing; (Note: Hose shall be provided by yourself)
2. Connect with the mains to start dynamo;
3. Open the nozzle to add oil;
4. Hang on the nozzle, means a refueling is completed.
注意事項 ATTENTION
1、上次加油完畢要進行下次加油時，請將上次計數歸零；
2、使用的液體燃點不能超過55℃；
3、不能空轉；
4、過濾網必須進行定期清理。
1. When for the next refueling, please make sure that the data displayed in zero;
2. The ignition point shall be not exceed 55 ℃;
3. Running empty is not allowed;
4. Filter must be cleaned in regulat.
常見故障維修 TECHNICAL SPECIFICATION
|
